Bend Allowance- CSWP Sheet Metal

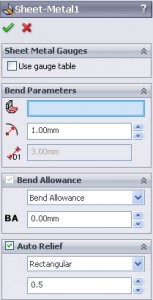

Bend allowance is used to calculate the exact dimensions of bends in sheet metal. This value is directly related to the material being used. It can be specified for an entire part using the “Sheet-Metal” feature. The value can also be changed on a per bend basis by editing the values of a specific bend.

This is only one of the ways the bend values can be calculated. See others

Bend Deduction
K-Factor
Gauge Bend Tables
