Just looking at what is next on the list to study for. I’ve got a few side projects I plan to work on but there are lingering vouchers for the Mold Tools and Surfacing tests and figured I may as well study for them with what time I do have. Having worked for an injection […]

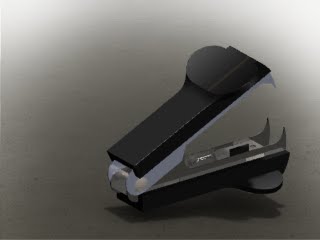

Tutorials of creating random sheet metal parts is fun and all but sometimes it’s nice to practice modeling something else. Water Filtration systems are fine, but what I am designing professionally is limited in feature scope. As I built out a library work is becoming more and more a drag and drop routine, which is

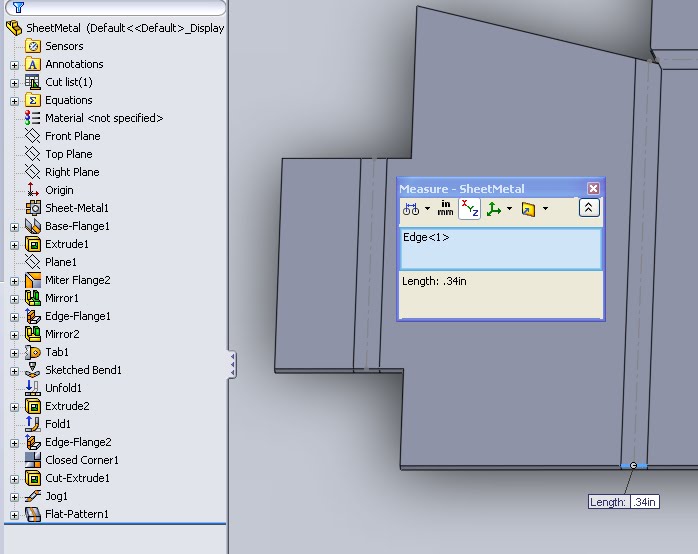

Whoa, it’s the last feature of Sheet Metal. Things here are pretty basic, select the feature in the tree or unsuppress it to get the flat pattern of the part. All of the flatten feature options are spelled out nicely in the Help Files, although none of them should effect the results for the exam.

The fold and unfold commands are unique from the flatten command in that they are time dependent. The Flatten feature appears at the end of the tree and can be suppressed and unsuppressed to view the flat pattern, but the fold and unfold features can appear anywhere in the tree. As with other Solidworks features

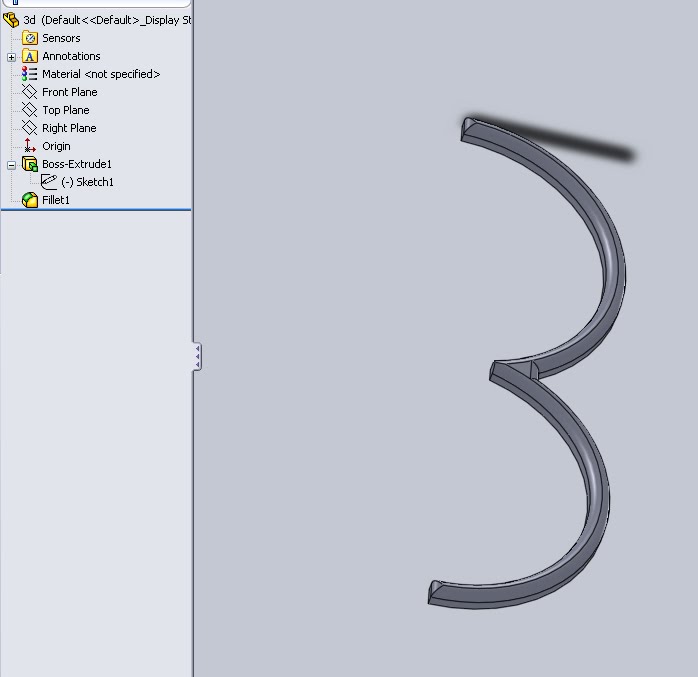

Form tools are used during the manufacturing process to create unique features on parts. Punched holes, vents, indentions, ribs and plenty of other functional items can all be modeled this way. Typically once a tool is made it is best to design future parts with the same features to eliminate the need for more tools

A sketched bend is one of the easiest ways to change an existing sheet metal part. In a similar fashion to the “Jog” command a sketched bend can create a feature without adding any material. This helps to maintain a conceivable flat pattern without having to create too many relation rules. A one line sketch
